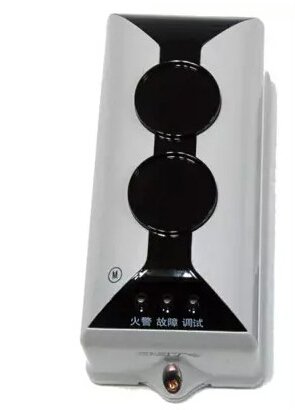

Beam Smoke Detector Fire Alarm System

Unlike traditional detection systems, Reflected Beam Smoke Detectors were designed for spacious rooms, open areas, and high ceilings.

Conventional Reflected Beam Smoke Detection

Model: HD106
Shipping Weight: 4 kgs
99 Units in Stock
Manufactured by: HST fire alarm

Ask a Question

$129.00

Unlike traditional detection systems, Reflected Beam Smoke Detectors were designed for spacious rooms, open areas, and high ceilings.

Their innovative features make them popular choices for spaces like warehouses, atriums, arenas, and churches.

With only one device to install and align, these single-ended optical beam solutions save you time and money on open-area and high-ceiling applications.

The firebeam protection system includes a motorised head unit containing an infra-red transmitter and receiver, a ground level controller and prism reflector.

Making use of the prism reflector the returned infra-red beam is analysed for smoke contamination and registers a fire condition at a pre-determined level.

At ground level the controller unit is used to make operational adjustments. The standard protection system covers a range of 5 to 40 meters.

https://vedardalarm.com/conventional-reflected-beam-smoke-detection-p-169

Technical Specification:

1. 8 Bit intelligent Microcontroller to avoid false alarm

2. 24V power supply

3. 470 ohm Resistant

4. Detection Range from 8m to 100m, Width 14m

5. Operating current: standby 1mA, Alarm Current 2.5mA

6. Operating environment: temperature -10 to 60C. relative humidity: 92%

upc code: 782123753499

Product Specifications

Product Date 2026
Delivery cycle within 1 month
Customize Support
Price Quotation
Exit Support
OEM Quotation
Supplier 维德对外贸易（泉州）有限公司
Delivery Method Land transport/Ocean transport, etc.
User Manual provide
Shippable Areas Southeast Asia and Global

Procurement Recommendation

Due to market conditions, product updates, and policy changes, please contact the supplier for the latest information.
