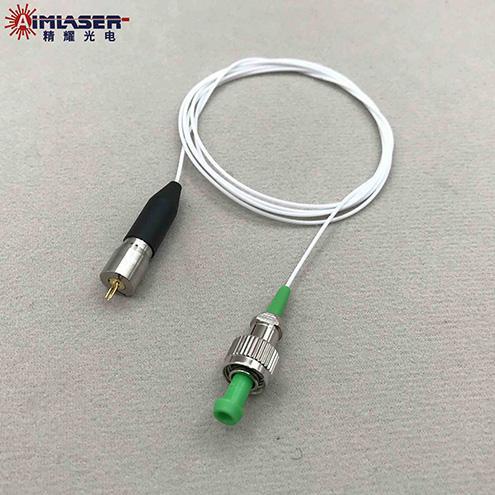

520nm 60mW Low Power SM Coaxial Pigtailed Fiber Coupled Laser Diode Modules Medical Laser Equipment
520nm 60mW low-power single-mode coaxial pigtailed fiber-coupled laser diode modules are used in medical, sensing, and alignment applications requiring green visible light.
AimLaser provides low power Pigtailed Coaxial Fiber Coupled Laser Modules whose wavelength ranges from 405nm to 1064nm and fiber core 4um, 9um, 50um, 62.5um, 105um, 125um, 170um and 200um etc. The connectors are available for SMA, FC or ST together with different fiber length.
Featured with compact size and low power consumption, our fiber coupled lasers use special designed LD drivers based on customer applications and PD feedbacks can be added to improve the reliability and stability of the lasers.
| ITEM | SPECIFICATIONS |
| Model Number | AM520MF60FC Coaxial Pigtailed Fiber Coupled Laser Module |
| Wavelength | 520nm |
| Output Power | ≥60.0mW |
| Laser Mode | CW |
| Spectral Width | <2.0nm |
| Wavelength Shift | 0.2nm |
| Operating Current | <250mA |
| Operating Voltage | 3.0V DC |
| Optical Lens | Optical Glass Lens |
| CDRH Class | Class IIIb |
| Circuit control | Auto Constant Current (ACC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -40℃ to 80℃ |
| Dimensions | Φ14x50mm (ACC Inside) |
| Housing Material | Brass |
| Fiber Core Diameter | 105um multimode Fiber |
| Fiber Length | 1m |
| Numerical Aperture | 0.22 N.A. |
| Connector | FC/PC |
| Life Span | 8,000Hrs |
Pigtailed Coaxial Fiber Coupled Laser Modules Applications
-
Optical Alignment Systems
-
Medical Laser Instrument
-
CTP Laser Printing
-
OEM Instrumentation
-
Laboratory Instrument
-
Laser Test and Inspection Equipment
Why buy Laser Modules from AimLaser?
-
Provide One year warranty
-
Offer customized solutions
-
Normal sample lead time: within 2 weeks
-
Conform to ROHS, FDA, IEC, SGS standards
-
ISO9001:2008 certified laser module manufacturer
-
Using original Laser Diodes from Arima, Osram, Nicha and branded chips
Product Specifications
- Product Date 2026
- Delivery cycle within 1 month
- Customize Support
- Price Quotation
- Exit Support
- OEM Quotation
- Supplier Aiming Laser Technology Co., Ltd.
- Delivery Method Land transport/Ocean transport, etc.
- User Manual provide
- Shippable Areas Southeast Asia and Global
Procurement Recommendation
520nm 60mW SM fiber-coupled laser diode: coaxial pigtailed module for medical devices; confirm TEM?? mode, FC/PC connector, and TEC cooling (for reference only).
Due to market conditions, product updates, and policy changes, please contact the supplier for the latest information.
