A chain hoist rarely fails without warning. The first clue usually shows up days earlier — a twisted load chain, a hook latch that will not close, a brake that lets the load drift. Catching it costs minutes. Missing it costs downtime, and sometimes a damaged load.

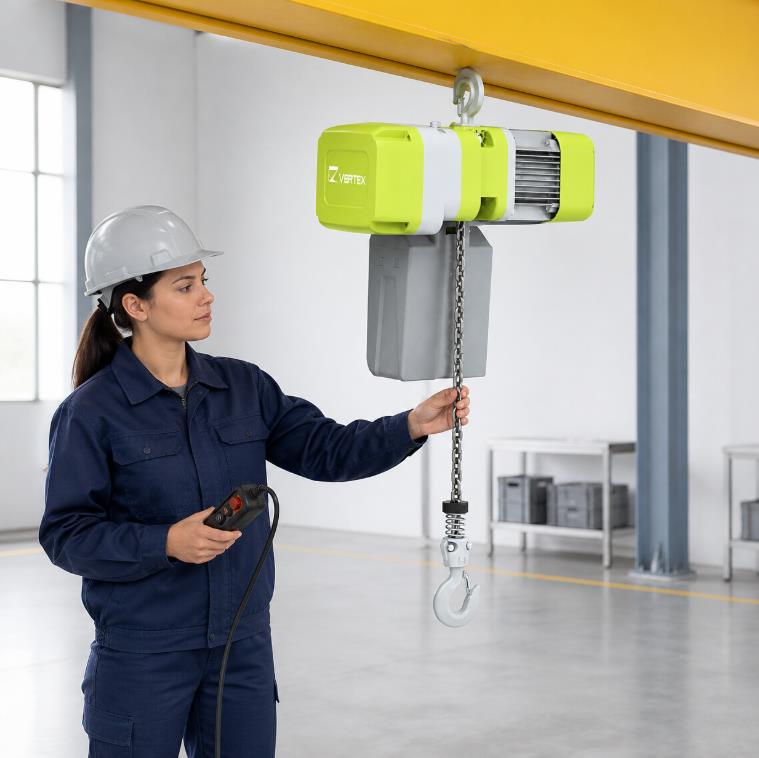

The pre-shift walkaround
Run this short visual and functional check before the first lift of every shift:
Load chain — no twists, kinks, stretch, corrosion or cracked links
Hook and latch — no cracks or deformation, latch closes fully
Brake — raise a light load and hold; it must not drift
Limit switches — upper and lower stops cut the motor
Pendant and cable — buttons and emergency stop respond, no exposed conductor
Housing and drive — no cracks, oil leaks, loose fasteners or unusual noise
Scheduled maintenance
Lubricate the load chain with creeping oil; keep brake discs free of oil and grease, unglazed and even in thickness
Measure chain wear with a gauge and replace at the elongation limit in your manual
Check the gearbox oil level and top up to spec
Test overload protection and record the result
Know your intervals
ASME B30.16 defines the pre-operation, frequent and periodic inspection classes for electric chain hoists; under OSHA 1910.179, "frequent" means daily to monthly, and "periodic" one to twelve months. Keep a written record — an auditable log is what inspectors and insurers ask for first.
Less maintenance by design
VERTEX electric chain hoists pair a sealed aluminium alloy die-cast housing with a 100% pure copper coil motor (Class F insulation), 24V / 36V low-voltage, heat-treated G80 load chain. Low-headroom, dust-free and explosion-proof BT4 / CT4 builds are available, together with factory-direct spare parts and OEM / ODM or SKD / CKD supply.
