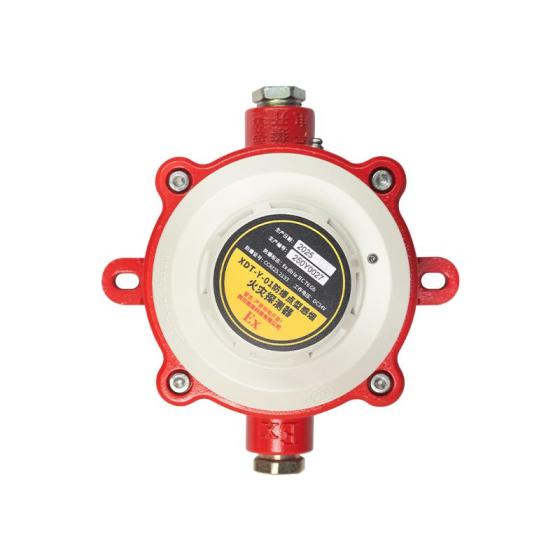

Explosion-Proof Point Type Smoke Fire Detector – Hazardous Area Certified Flame Detection

Explosion-proof smoke detector certified for hazardous locations, providing reliable flame and smoke sensing in oil, gas, and chemical plants.

Introduction of Explosion-proof point type smoke fire detector

XDT-Y-01 explosion-proof point type smoke fire detector, non-code switch type (relay output) detector. Detector adopts infrared scattering principle to detect fire, the circuit is mainly composed of infrared emitting part and receiving part, the transmitting tube and receiving tube are placed in the optical dark room, the optical dark room can shield the interference of external stray light, but does not affect the smoke into. In the smoke-free state, only receive very weak infrared light, when there is smoke into, due to the scattering effect, so that the received light signal is enhanced, when the smoke reaches a certain concentration, can output alarm signal.

Product model

XDT-Y-01
Explosion-proof type	Flameproof and intrinsically safe type
Explosion-proof mark	Ex db ia IIC T6 Gb
Class of protection	IP23
Operating voltage	DC24 V
Rated power	0.72 W
Static current	≤150uA
Alarm current	10mA≤I≤30mA
Alarm output	NO/NC (Relay capacity 1A)
Response threshold	0.10dB/m to 0.27 dB/m
Alarm reset	Instantaneous power failure (10s Min, DC2.5V Max)
Alarm recognition light	Red, periodic shining during normal monitoring, alarm often bright
Safety gate parameter	Ui=28VDC; Ii=60mA
Protected area	When the space height is 6m~12m, the protection area of a detector is 80 square meters for the general protection site. When the space height is below 6m, the protection area is 60㎡;
Overall dimension	About 160mm160.5mm106mm
weight	About 908g
Working environment
Operating temperature	-10℃～+55℃
Relative humidity	≤ 95% (no condensation)
Atmospheric pressure	86 kPa to 106kPa
Use environment	Used in Zone 1, 2, IIA, IIB, IIC gas environment

Product Specifications

Product Date 2026
Delivery cycle within 1 month
Customize Support
Price Quotation
Exit Support
OEM Quotation
Supplier Sichuan Xuxin Technology Co., LTD
Delivery Method Land transport/Ocean transport, etc.
User Manual provide
Shippable Areas Southeast Asia and Global

Procurement Recommendation

Explosion-proof smoke detectors for hazardous areas must carry ATEX/IECEx Zone 1 or NEC Class I Div 1 certification. Never substitute standard detectors in flammable vapor environments; perform regular bump tests with certified aerosols. (for reference only)

Due to market conditions, product updates, and policy changes, please contact the supplier for the latest information.
