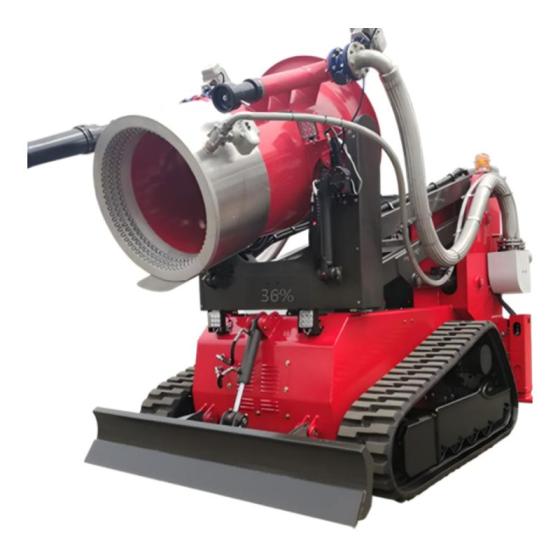

Firefighting Robot with >40m Spraying Range – Air Blower Driven Remote-Controlled System

Remote-controlled firefighting robot with over 40-meter water projection range, powered by air blower for hazardous zone intervention.

Exhaust Firefighting Robot equipped with all terrain track, equipped with high power diesel drive unit , strong load capacity, and equipped with fire sprayer and water cannon.Self developed super smoke extractor, more water mist, fast cooling and smoke removal;The system is equipped with an explosion proof multi environment detection device. It could detect possible major hazards include 13 kinds of parameters, such as toxic and harmful gases, radiation heat, nuclear radiation, dust concentration, noise, temperature and humidity. Equipped with 360 degree panoramic image system, 360 degrees monitoring without dead angle, is convenient for operator to control robot;The front end is equipped with cleaning device, can be simple to quickly remove obstacles;The robot is equipped with a hydraulic traction device that can output nearly 800kg of traction.

Features:

1. fire extinguishing, smoke exhaust, reconnaissance, wrecker, traction functions.

2. equipped with 360 degree panoramic image system, 360 degrees monitoring without dead angle, easy to control robot manipulator

3.robot equipped with front wrecker, can effectively remove the obstacles, to speed up the rescue work

Vehicle Performance Parameters	work unit	parameters
Gross vehicle weight	Kg	3500
Engine power	kw	55
Straight line traveling speed	Km/h	00/9
Water belt towing capacity	Bidirectional DN80 water belt 300 meters
Lateral stability angle	0	≥25
Overrun Height	mm	≥220
Minimum Ground Clearance	mm	≥250
Climbing degree	0	>35
Overall dimensions	mm	3000×1800×2000
Performance Parameters of Bulldozer	work unit	parameters
Shovel thrust	KN	≥25
Shovel pitch angle	0	0~+50
Performance Parameters of Fire Cannon and Smoke Extractor	work unit	parameters
Maximum lifting height above the ground	mm	≥2800
Smoke exhaust mile	m1/h	≥90000
Spraying range of the air blower	m	≥40
Pitch angle of air blower	0	-10~+60
Range of water cannon	m	≥80
Video transmission device	work unit	parameters
Video transmission distance	m	≥200
Robot Action Remote Control Distance	m	≥200

Product Specifications

Product Date 2026
Delivery cycle within 1 month
Customize Support
Price Quotation
Exit Support
OEM Quotation
Supplier Dalian Wills Machine Co.,Ltd
Delivery Method Land transport/Ocean transport, etc.
User Manual provide
Shippable Areas Southeast Asia and Global

Procurement Recommendation

Firefighting robots must deliver >3,000 LPM, withstand 200°C for 30+ minutes, and include thermal imaging. Verify NFPA 2400 or GA 820 compliance; ensure fail-safe stop on signal loss and obstacle detection to prevent entrapment. (for reference only)

Due to market conditions, product updates, and policy changes, please contact the supplier for the latest information.
