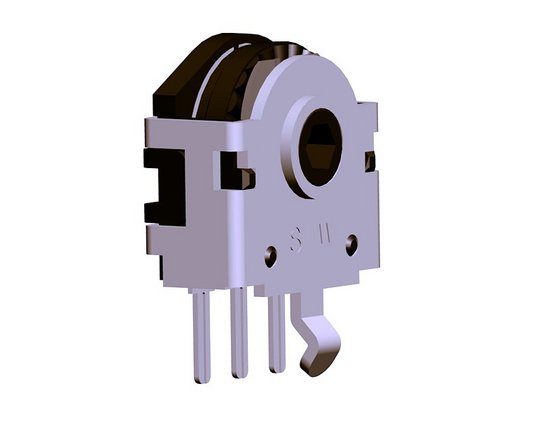

10mm Hollow Shaft Incremental Encoder – Model EC101102X2G-VA5

10mm hollow shaft incremental encoder (Model EC101102X2G-VA5) offers precise position feedback for motors and machinery. Compact, robust, and compatible with industrial automation and motion control systems.

Encoder model：	EC10
Name：	Hollow shaft Incremental encoder
Main Specifications:	Dimensions：10mm Rated power：DC5V 10mA； Location Number：12个/24个 The number of pulses：6/12 Working temperature：-20℃～80℃； Operation life: 100000 cycles min；
Product Features：	Small size, long life, designed for through-shaft type.
Applications：	It is mainly applicable to mouse, earphones, radio, electronic toy, E-cigarette or other electronic products; the main functions include paging turning, frequency modulation, adjusting light, adjusting volume, adjusting speed, adjusting temperature, menu selection and so on.

EC10ProductSpecifications

ONE、MECHANICAL CHARACTERISTIC
1、 Rotational torque ：5~100gf.cm
2、Total ratational angle ：360°
3、Number and position of detent ：12 detents ，24 detents

TWO、ELECTRICAL CHARACTERISTIC
1、Resolution ：6 pulses，12 pulses
2、Phase difference ：△T≥0.08T
3、Rating power ：DC5V 10mA
4、Insulation resistance ：10M? 1 Minute at DC 50V
5、Dielectric voltage ：1 Minute at AC 50V
6、Chattering ：≤3ms
7、Bounce ：≤2ms

THREE、ENDURANCE CHARACTERISTIC
1、Rotational life ：100,000 cycles Min

Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
