Creaform GoSCAN SPARK Portable 3D Scanner – Handheld Metrology for Reverse Engineering

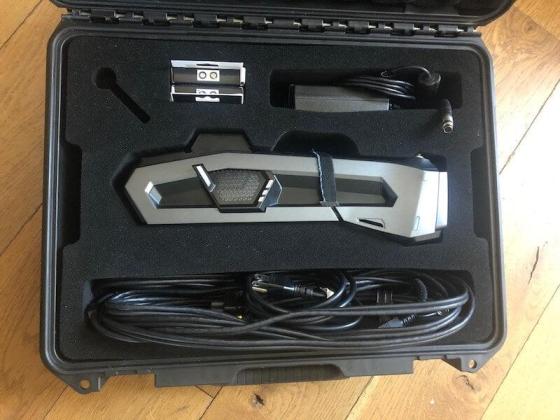

Package includes:

Go!SCAN SPARK Scanner unit
VXelements software
4m USB cable
Power supply
Calibration plate
1,000 reflective targets
Maintenance – Go! SCAN SPARK
VXelements software update
Transport case
1-year warranty on parts and labor
Specifications:

Accuracy : Up to 0.050 mm (0.0020 in)
Volumetric accuracy (based on part size) : 0.050 mm + 0.150 mm/m (0.0020 in + 0.0018 in/ft)
Volumetric accuracy with MaxSHOT Next | Elite : 0.050 mm + 0.015 mm/m (0.0020 in + 0.00018 in/ft)
Measurement resolution : 0.100 mm (0.0039 in)
Mesh resolution : 0.200 mm (0.0078 in)
Measurement rate : 1,500,000 measurements/s
Light source : White light (99 stripes)
Positioning methods : Geometry and/or color and/or targets
Scanning area : 390 x 390 mm (15.4 x 15.4 in)
Stand-off distance : 400 mm (15.7 in)
Depth of field : 450 mm (17.7 in)
Part size range (recommended) : 0.1–4 m (0.3–13 ft)
Texture resolution : 50 to 200 DPI
Texture colors : 24 bits
Software : VXelements
Output formats : .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software : 3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
Weight : 1.25 kg (2.7 lb)
Dimensions (LxWxH) : 89 x 114 x 346 mm (3.5 x 4.5 x 13.6 in)
Connection standard : 1 X USB 3.0
Operating temperature range : 5-40 °C (41-104 °F)
Operating humidity range (non-condensing) : 10-90%
