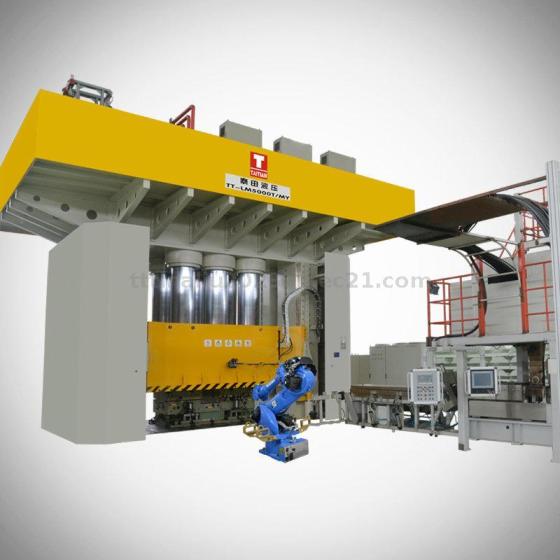

5000T Hydraulic Composites Forming Press – High-Tonnage Molding for CFRP & GFRP Parts

TAITIAN Hydraulic Composites Forming Press also called hydraulic compression molding press, it is applied in compression moulding of composites material such as LFT-D, SMC,BMC,FRP,GRP,GMT and so on. Our Hydraulic Composites Forming Press and press lines offer the plastics industry superiour production capabilities, as well as repair and upgrade options. In addition to supplying new custom hydraulic compression molding presses, TAITIAN provides a comprehensive list of repair and upgrade options for existing compression molding presses of all makes and models. Our compression molding presses are used to produce an extensive variety of innovative automotive, aerospace, industrial.

Main Specification:

Part No.			TT-LM5000T(only for reference)
Nominal Pressure		Tons	5000
Lifting Pressure		Tons	160
Max.Stroke of Slide		mm	2200
Max.Daylight		mm	3000
Working Table	L-R	mm	4600
Working Table	F-B	mm	3200
Slide Speed	Fast Approach	mm/s	500
	Pressing	mm/s	10-1
	Fast Return	mm/s	350
Approx.Total Power		KW	240
Approx.Overal Dimension		mm	10500×7300×9700

Main Features:
1. H Frame structure enjoys outstanding rigidity. It is mainly applied to compression moulding of SMC/FRP sheets. This serie of press has reached international advanced standards.
2. Adopt cartridge valve integrated system characterized by little impact, reliable movement, little leakage and long service life; Enjoy automatic lubrication system for guide rails. (Such technology is introduced from Taiwan.)
3. Mechanical-electrical-hydraulic integration safety device, for example, lower chamber support for the oil cylinder, interlock circuit of upper and lower chambers, all contributing to perfect safety. (We introduce advanced Taiwan hydraulic technology.)
4. Constant pressure and stroke can be set for same production. It is also functioned by adjustable pressure holding time delay.

Product Specifications

Product Date 2026
Delivery cycle within 1 month
Customize Support
Price Quotation
Exit Support
OEM Quotation
Supplier Xiamen Taitian Technology Group Co.,Ltd
Delivery Method Land transport/Ocean transport, etc.
User Manual provide
Shippable Areas Southeast Asia and Global

Procurement Recommendation

A?5000T hydraulic composites forming press?for CFRP/GFRP must deliver uniform pressure distribution (<±2% variance), rapid closing speeds, and precise dwell control. Features include mold heating (up to 200°C), vacuum assist, and force-displacement monitoring. Ideal for automotive structural parts or wind turbine blades. Avoid mechanical presses—they lack the dwell control needed for thermoset curing. Require suppliers to provide material flow simulation support and press tonnage mapping across platen area to prevent resin-rich zones. (for reference only)

Due to market conditions, product updates, and policy changes, please contact the supplier for the latest information.
