Eddy Current Flaw Detector – Non-Destructive Testing for Cracks & Material Defects

Eddy current flaw detector for non-destructive identification of surface cracks and material inconsistencies.

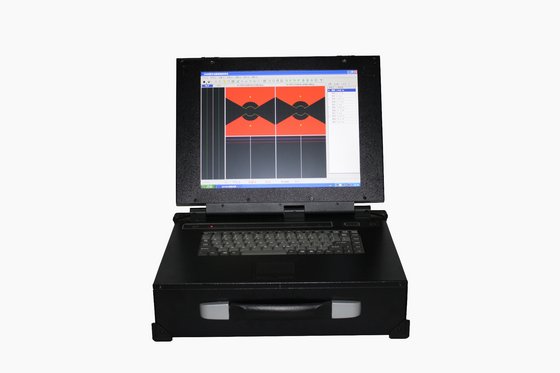

FET-99S intelligent digital type eddy current detector is suitable for online offline flaw detection metal pipes,wire rods, steel pipe,and electromagnetic wire,copper wire,aluminum wire.It also can be suitable for automatic detection of other mechanical parts .It has relatively independent detecting channel,and drive combined probes formed by absolute and differential coils,detecting channel collecting data at the same time so as to detect longitudinal cracks and transverse flaw of metal pipes ,wire rods during they are produced .It has high degree of sensitivity on concealed joint ,open crack and so on axial flaw .
It can detect cracks created by malfunction during production.The signal got by detecting channel can make impedance plane diagram and time base showed on the screen,adopting full digitization design ,so it can build many standard detecting procedures and professional systems in the instrument.It's convenient for users to use to change the specifications and be furnished with input and output control connector,convenient to detect connector of scene and many kinds of equipment and work together, forming a high degree of automation
features of function

frequency range :64HZ-2MHA	suitable for probes:rotation type
Gain :90db footsteps :0.5db	Suitable for metal pipes,rods,metal accessories,manufacturer online quality detection
phase position :0-360degree,footsteps is 1 degree	detecting speed :1m/min -560m/min
independent optional frequency	quick digital
different styles of mode setting	Non amplitude,dissymmetric phase position alarm regional setting
automatic phase position ,amplitude analyzing function	Many kinds of displayed ways: impedance,time base
automatic zero calibration system:interval time can be set	Digital filtering
different styles alarming area ,applied to different modes	Sound-light alarm output
gain ratio(X/Y) :0.1-10	Automatic balance time
automatic clear sceen /tracking impedance display	Internal external clock option
equipped with detecting singal playback,double directions access	Saving vast detecting procedures and detecting data
quickly analog /digital electronic automatic balance and dynamic tracking filtering	automatically alarm on probe device fault
operating interface is simple and intelligent ,easy to operate
